Replica 74" Panhead Cylinder Piston Kit
Before you order — V-Twin tech note

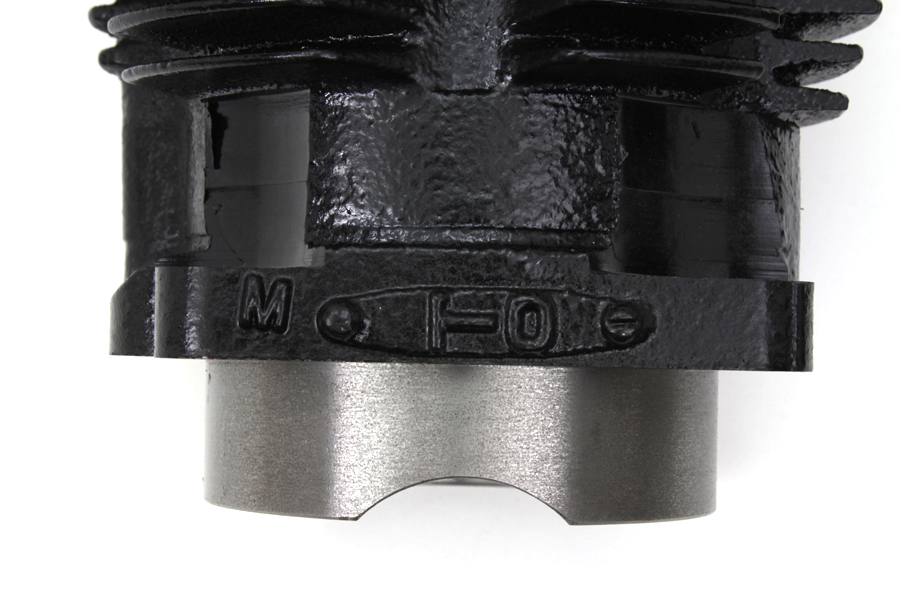

- Cylinders have M-1-0 date code.
Description

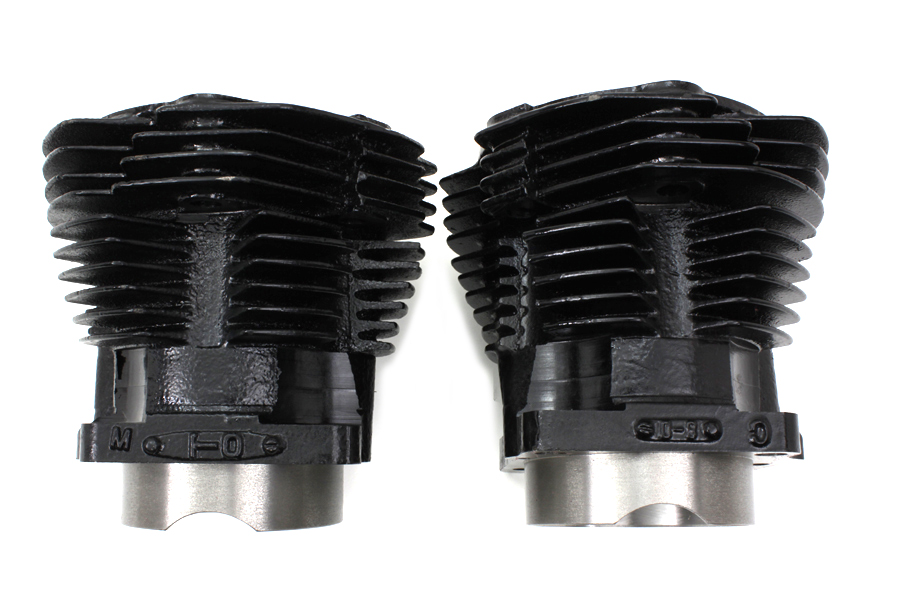

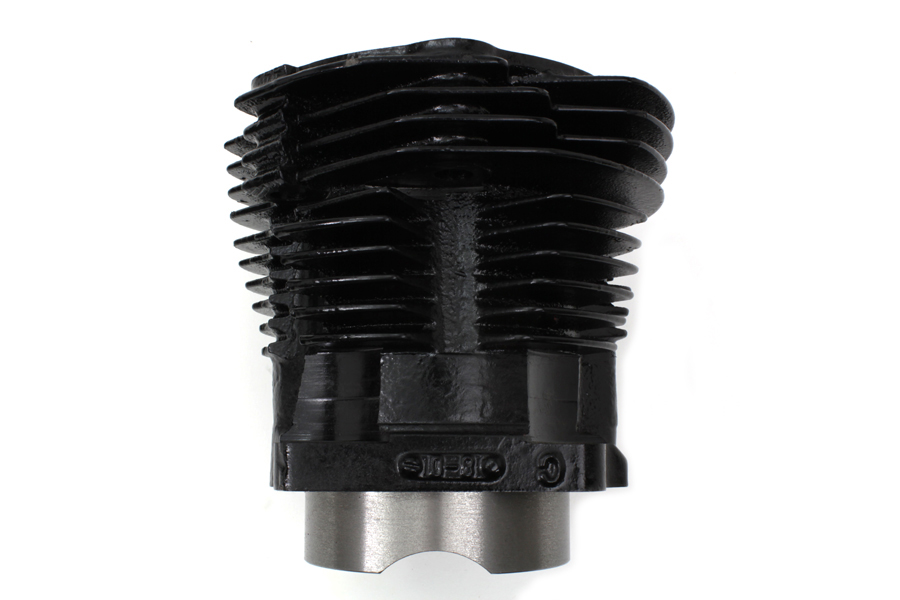

This 74" Panhead cylinder and piston kit is bored and honed to 87.325mm with a stock compression of 8.5:1. Cylinders have original casting marks as on stock cylinders for this year group. Both cylinders are equipped with oil passages drilled through the wall to allow oil to return through the bore to the crank case. Pistons are pre-fit ready to run. Break in slowly first 500 miles.
*NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003. Bore size is 3.4380"-3.4385" inner diameter.
V-Twin catalogues part 11-0885 for 1 Harley model: FL (1948-1952). This one is made by Motorshop, sold as 1 - kit.
Specifications
- V-Twin number
- 11-0885
- Manufacturer
- Motorshop
- Sold as
- 1 - KIT
- Origin
- Imported
- 2026 catalogue pages
- 536
