PART 11-0506
Replica 61" Knucklehead Cylinder Set Black
by Motorshop
$1,162.70
V-Twin list $968.92 ยท our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
Classic Pre-1984
๐๏ธ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 1 model.
Description

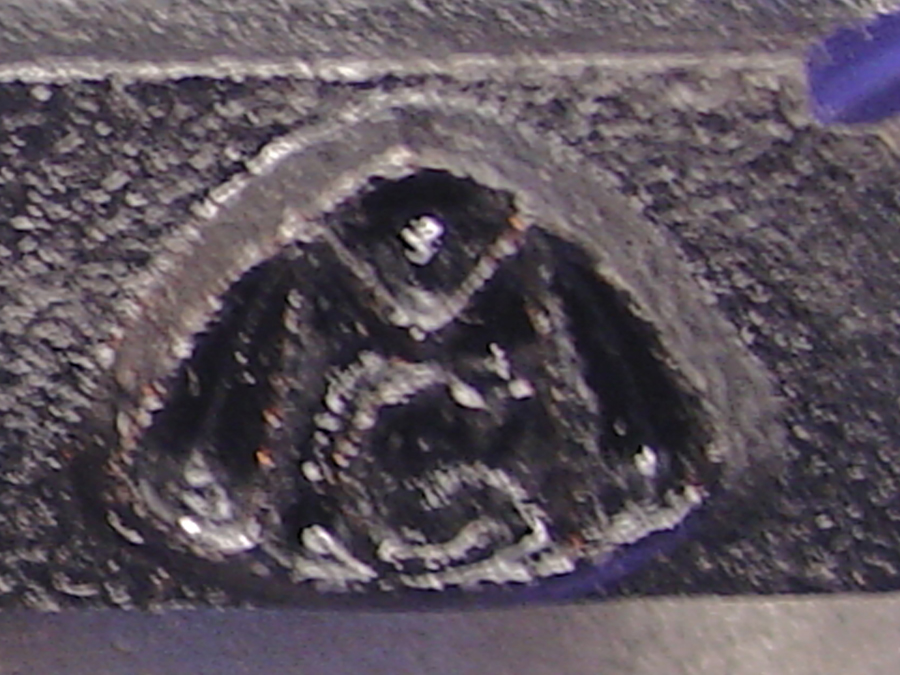

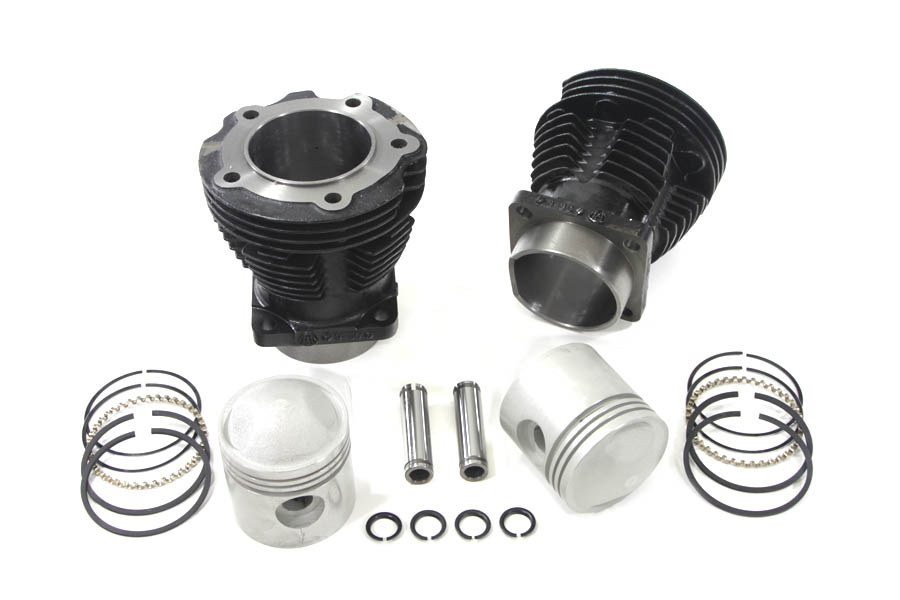

Replica 61" Knucklehead cylinder set features cast iron construction with 4 fins above head bolt line. Original markings with a black finish and are pre fitted with cast 7.5:1 pistons and rings. Cylinders have original casting marks of MoCasCo. Set includes 61" overhead valve piston ring set.
*NOTE: Check ring gap before final assembly. Include casting numbers on cylinders.
*NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
V-Twin catalogues part 11-0506 for 1 Harley model: EL (1936-1947). This one is made by Motorshop, sold as 1 - kit.
Specifications
- V-Twin number
- 11-0506
- Manufacturer
- Motorshop
- Sold as
- 1 - KIT
- Origin
- Imported
- Measurements
- Final Cylinder Bore: 84.1248mm
- 2026 catalogue pages
- 537
Goes with this part
V-Twin lists these alongside 11-0506 — replacements, the parts commonly fitted at the same time, and supersessions. Check the fitment on each before ordering.
Fits these motorcycles (1)
EL1936-1947
