Home › Sportster 1952-Up › Chassis › Frame › Rigid › 6" Hardhead Frame Neck Raw Steel
PART 51-8603

6" Hardhead Frame Neck Raw Steel

by AEE
$947.21
V-Twin list $789.34 · our price includes online ordering & support
Checkout is not open yet — add parts to build your list. How shipping will work

You will also need another part

  • Required Required to use with #51-0389 XL Brake Shaft Tube
Sportster 1952-Up
🏍️ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 1 model.

Description

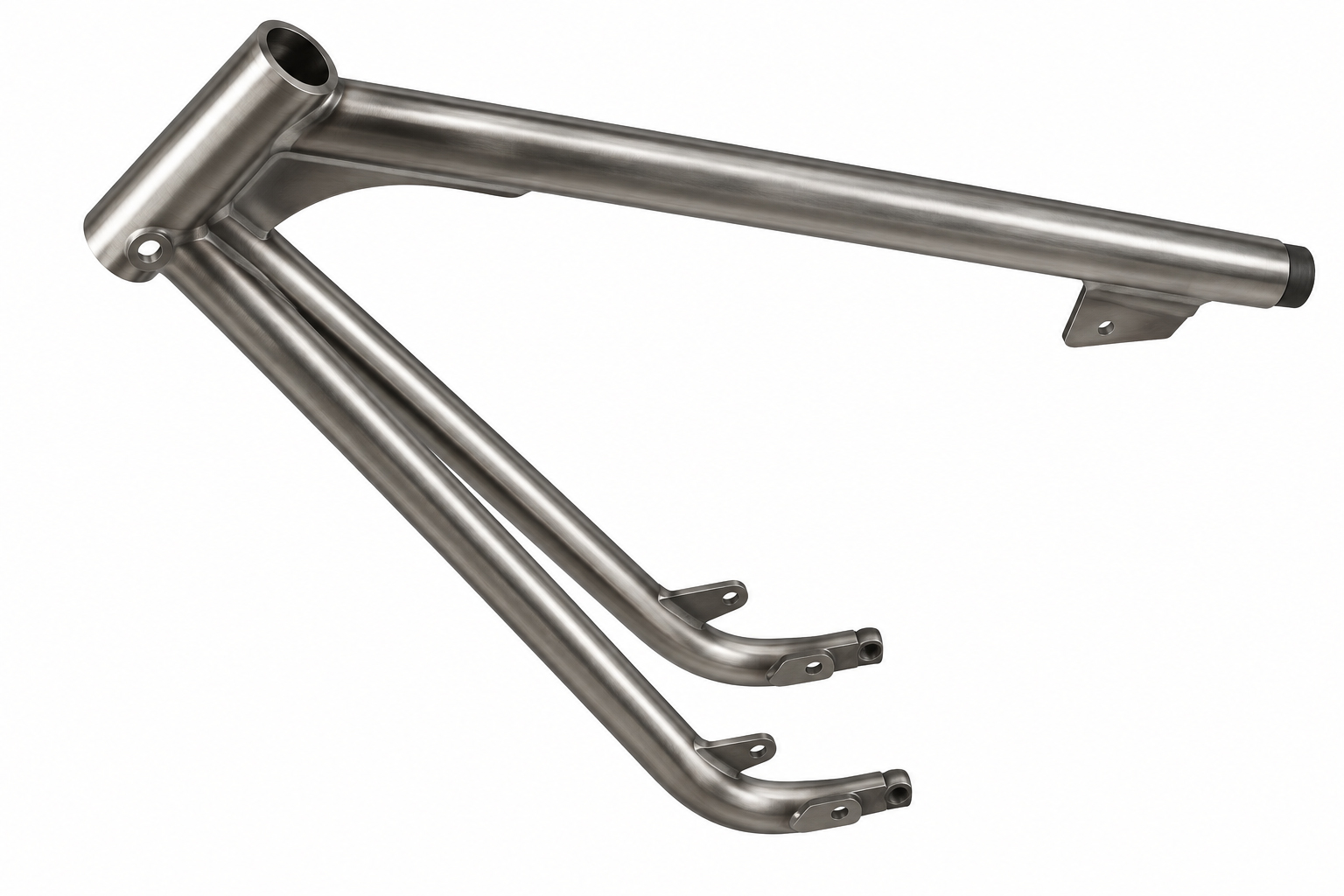

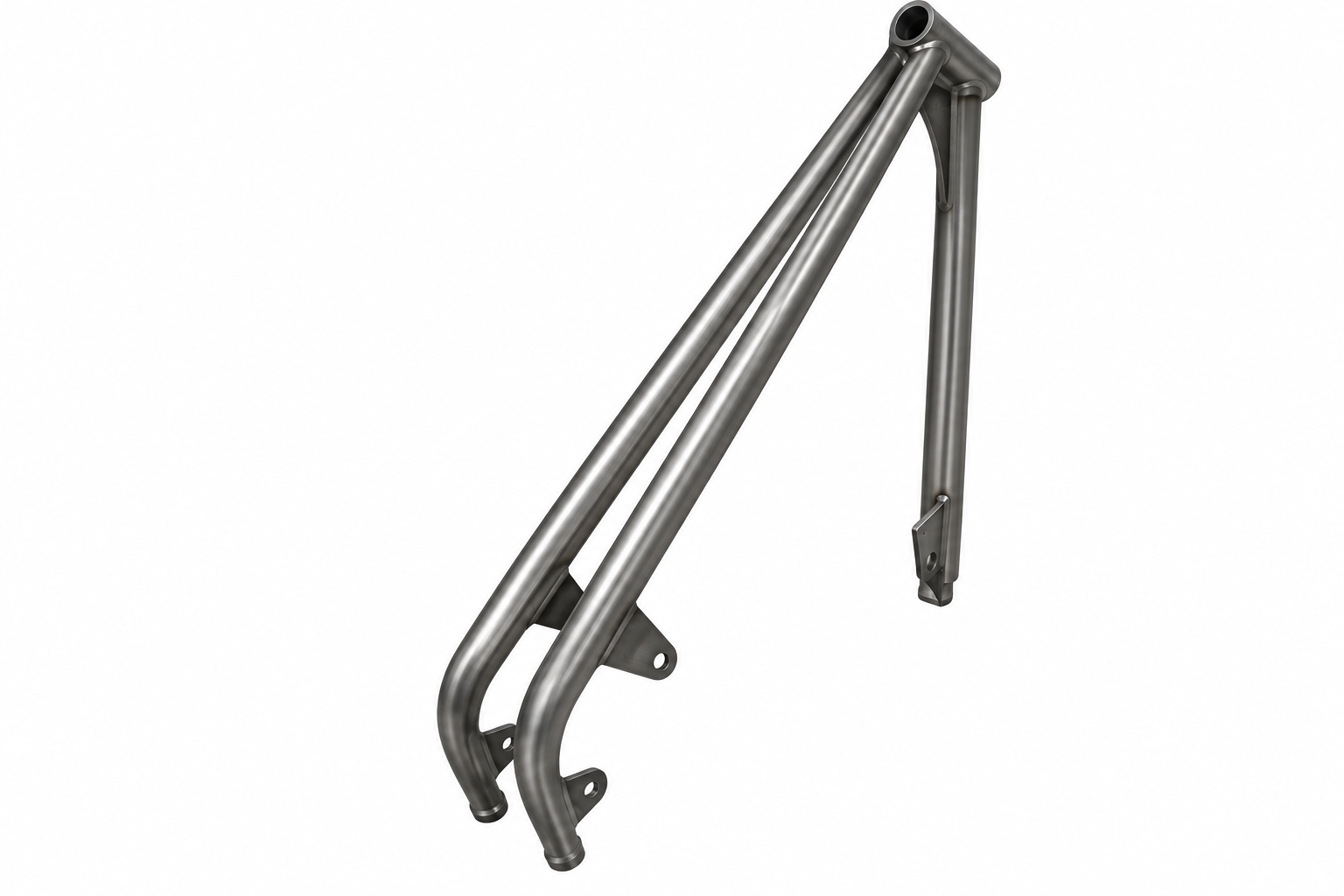

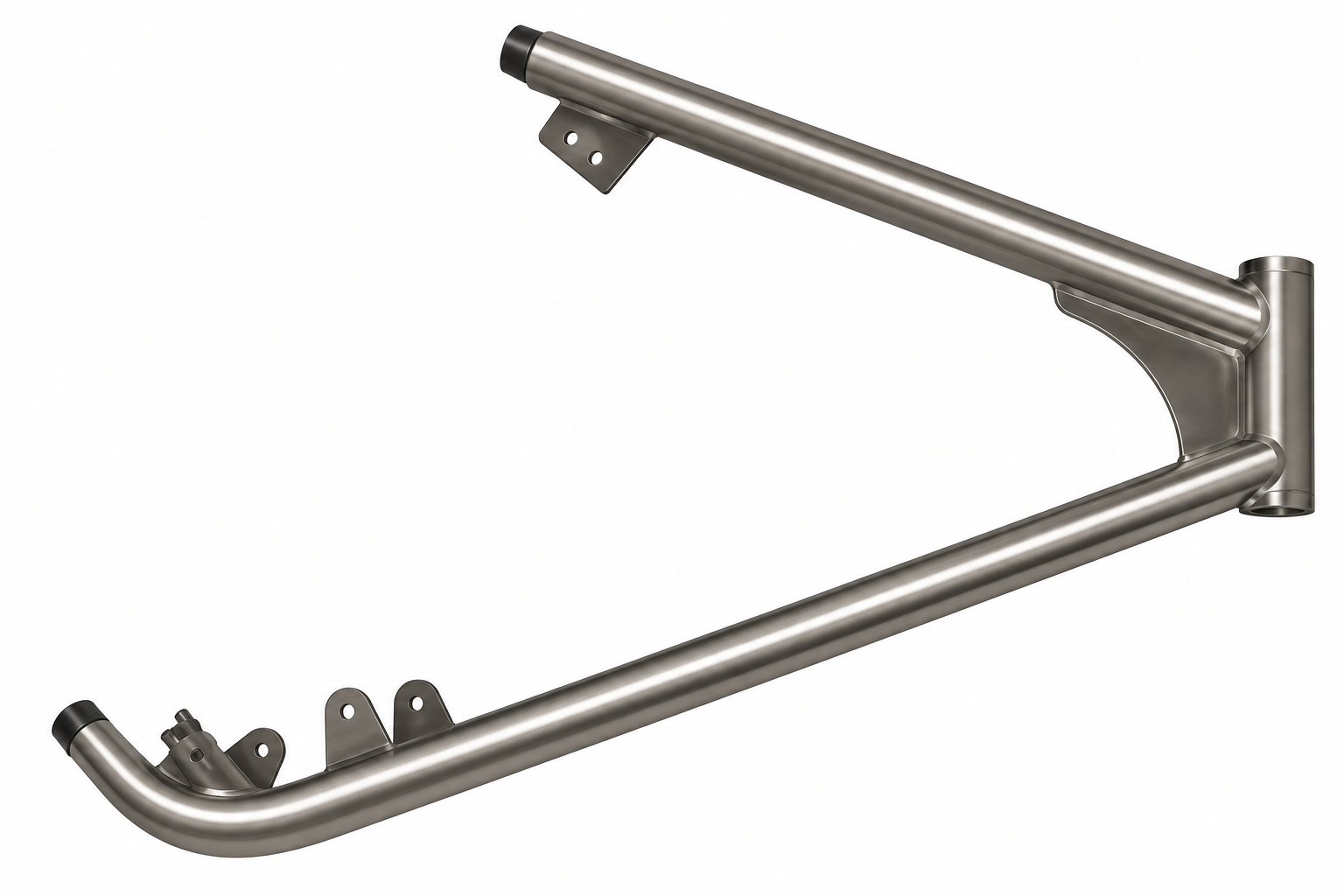

Hardhead frame neck is 40° with 6" rise for the digger look and features a raw steel finish. Accepts 1" neck cup set, available separately. Use motor installed for alignment. Down tubes are 1" outer diameter give a lighter forward look. Must be welded in place. Accepts Big Twin 1" bearing cups.

*NOTE: Frame does not include mechanical cross shaft tube, available separately as required. Use gussets supplied as part of frame. **NOTE: Frame hardhead neck does not have serial numbers!. Use weld inserts into upper and lower tubes.

V-Twin catalogues part 51-8603 for 1 Harley model: XL (1986-2003). This one is made by AEE, sold as 1 - ea.

Specifications

V-Twin number
51-8603
Manufacturer
AEE
Sold as
1 - EA
Origin
Imported
2026 catalogue pages
945

Fits these motorcycles (1)

XL1986-2003
