Lowered Rear Axle Plate Set Raw
Before you order — V-Twin tech note
- Suggested to use with #9629-2T Rear Chain Adjuster Parkerized.
Description

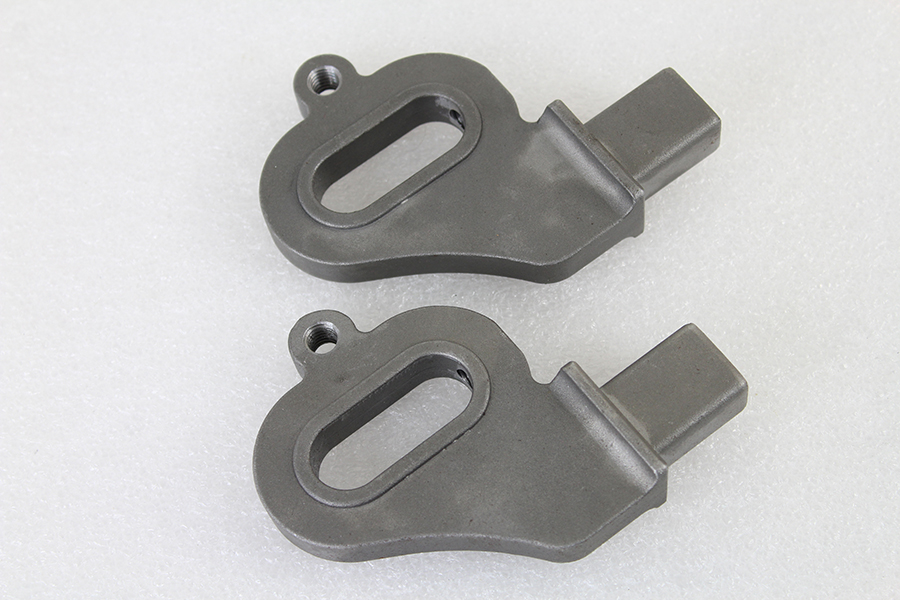

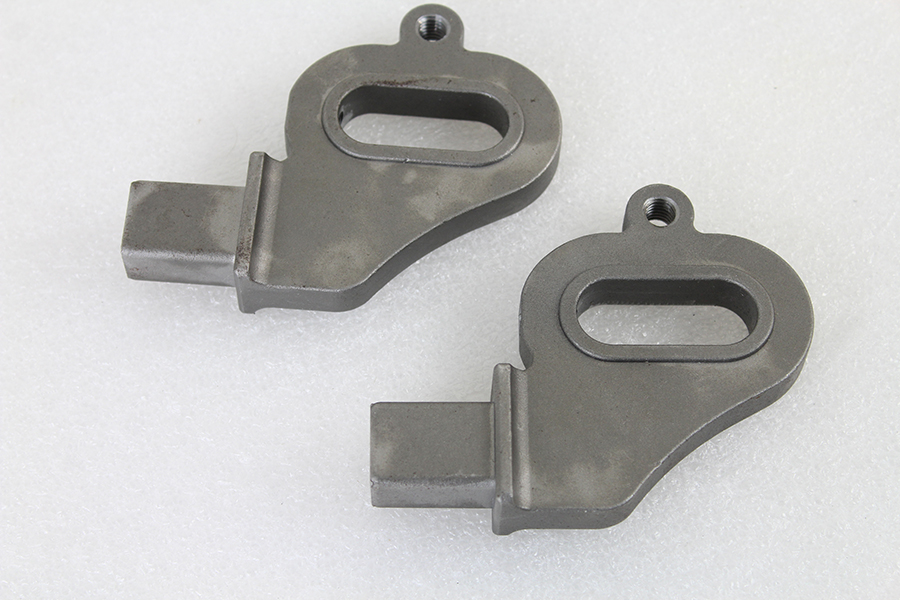

Lowered rear axle plates are threaded 3/8"-18 for fender brace sissy bar mounting. Adjusters threaded 3/8"-24 use screws for adjusters, to act as push type. Features a raw cast steel construction. Axle mounts accept 3/4" axle, mounts will need material added to fit tight into rectangular swingarm tubing. Recommended plug weld from sides as well. Use axle and spacers or 3/4" threaded rod for alignment purposes. Lowers the bike 1-1/2".
*NOTE: Welding and fabrication required for installation. Cut original rectangular swingarm to desired length. Fabricator must cut swingarm and reweld lowering axle plates in place and check fender clearance.
*NOTE: Must be welded in place. Use rigid frame wheel adjusters.
V-Twin catalogues part 51-1322 for 3 Harley models: XL (1979-UP), FX (1973-1984), FL (1973-1984). This one is made by V-Twin, sold as 1 - set.
Specifications
- V-Twin number
- 51-1322
- Manufacturer
- V-Twin
- Sold as
- 1 - SET
- Origin
- Imported
- 2026 catalogue pages
- 658
