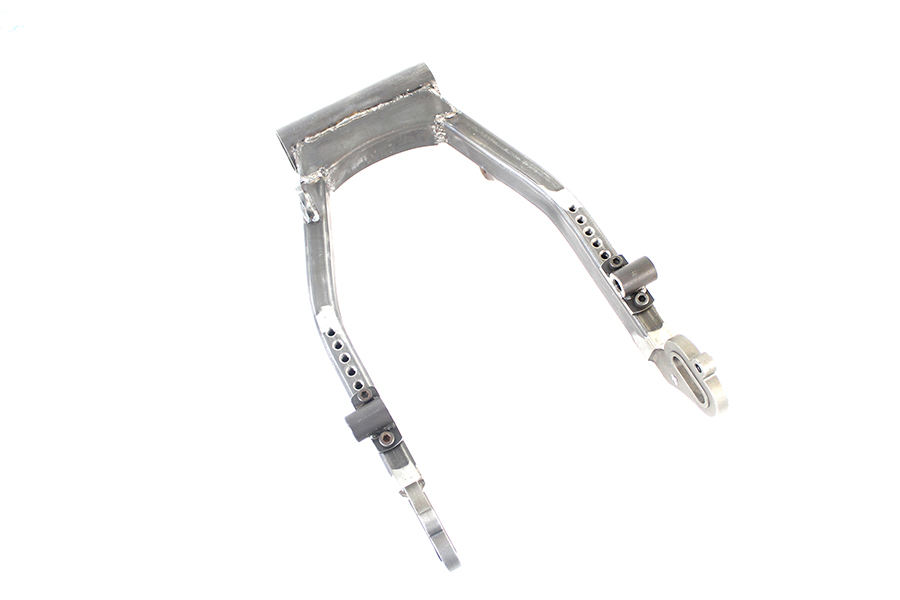

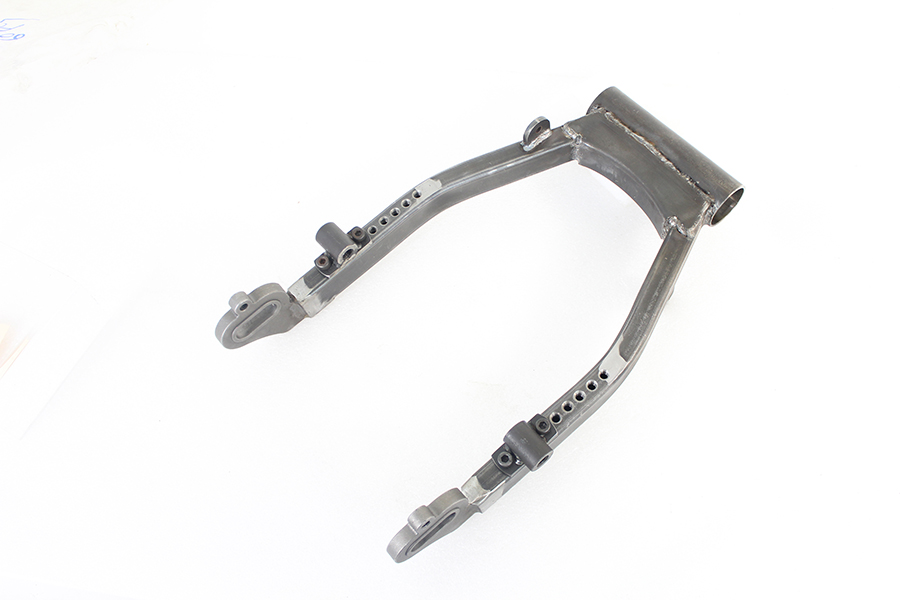

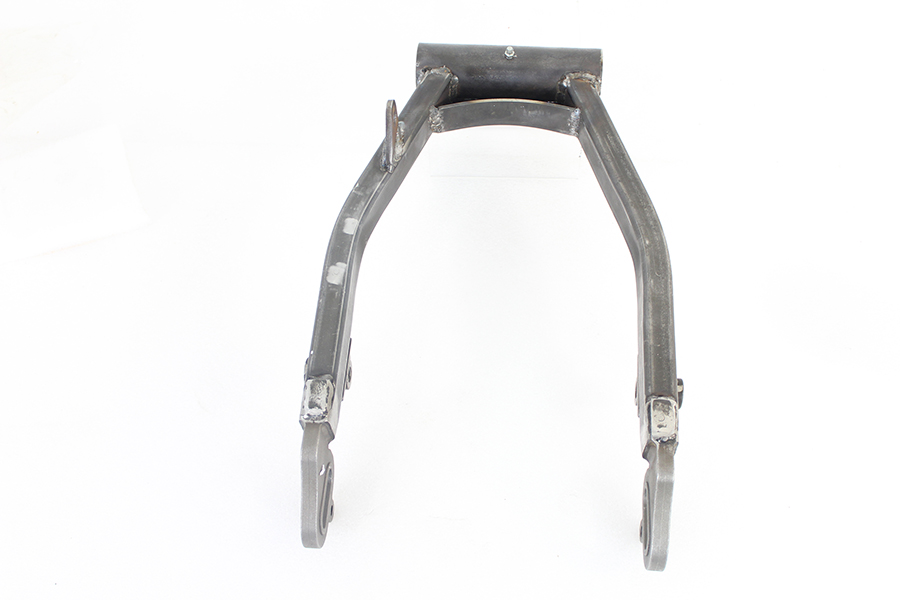

Dropped Swingarm Raw
Description
Raw finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4", for disc brake applications. Swingarm is for use with 4 speed models. Lowers bike 2" and lengthens wheel base 1/2". 140 is the widest tire that can be used. Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating".
*NOTE: Must order swingarm pivot pin assembly separately.
*NOTE: Race is installed, but the bearings are not included.
*NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
V-Twin catalogues part 51-0783 for 2 Harley models: FX (1973-1984), FL (1973-1984). This one is made by V-Twin, sold as 1 - ea.
Specifications
- V-Twin number
- 51-0783
- Manufacturer
- V-Twin
- Finish
- Raw
- Sold as
- 1 - EA
- Origin
- Imported
- 2026 catalogue pages
- 658
