Panhead Luggage Rack
You will also need another part
- Required Required to use with #2591-12 Luggage Rack Mount Kit to mount to rigid fenders.
- Required Required to use with #2592-12 Luggage Rack Mounting Kit.
Description

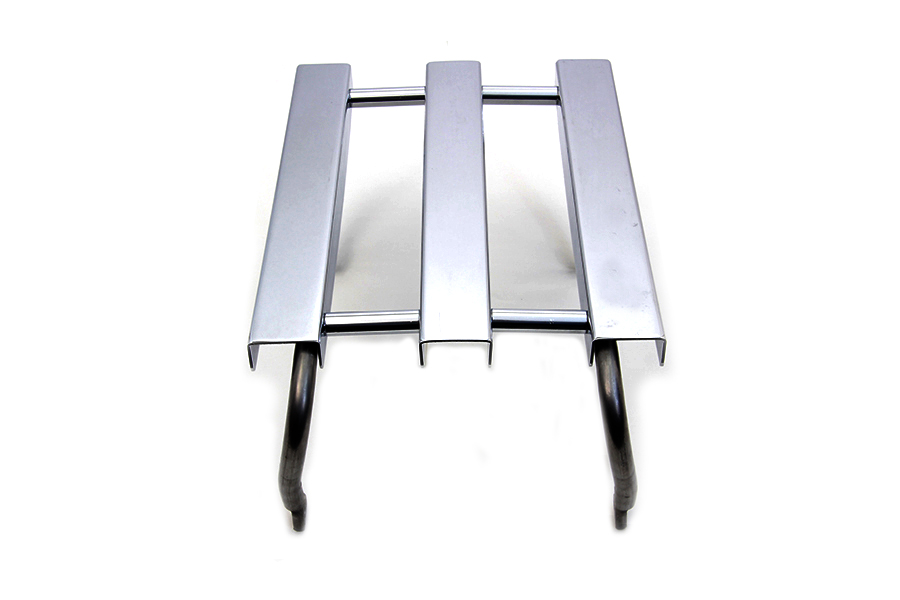

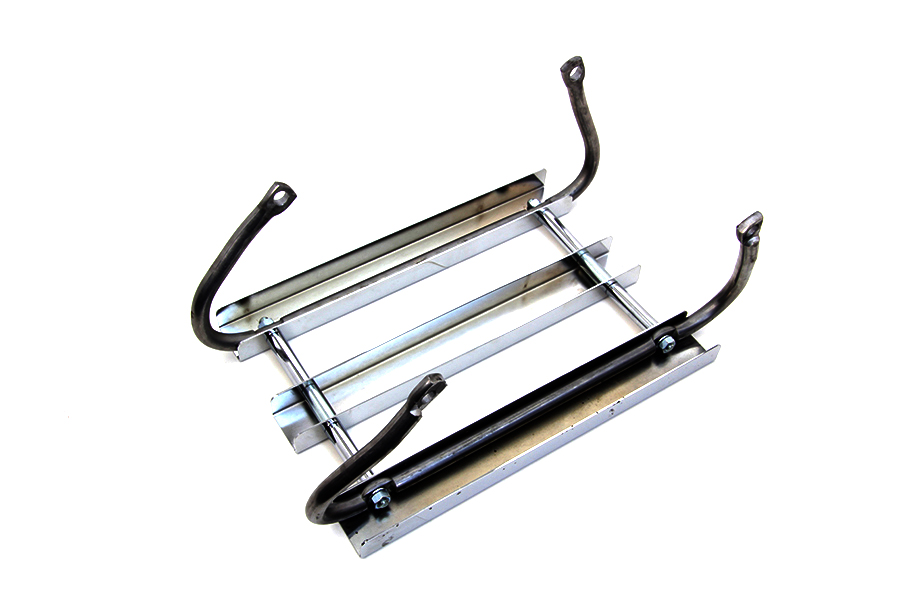

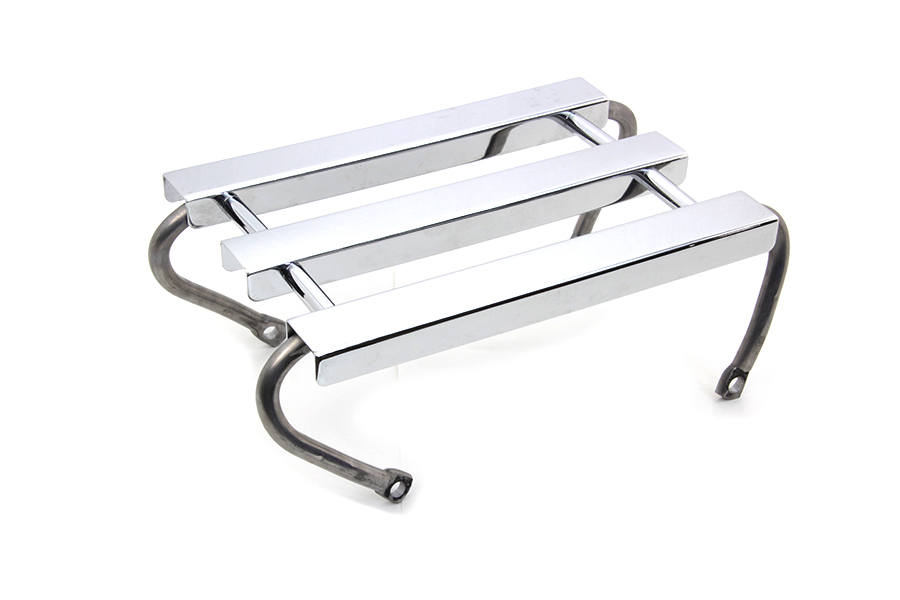

Replica Panhead luggage rack feature the 3 channel design. Replica luggage rack replaces OEM #53403-52. Requires OEM #53457-52, Panhead luggage rack stud nuts, for installation. The fender must first be drilled for installation. Luggage rack fits on 1949-1957 FL Panhead models with smooth rear fenders, however can be retro fitted to other fenders with that share the same width. The front to back length at its widest width measures 9-5/8" and the widest width measures 8-1/8".
*NOTE: Muse order hardware separately.
*NOTE: This will need modification to fit over chrome saddlebag mount plates. **HINT: Loosen connector rods between the bars, mount to struts, then re-tighten connector rod nuts. (The rods go thru the 3 bars.)
V-Twin catalogues part 50-1661 for 2 Harley models: FL (1948-1957), EL (1948-1952). It cross-references Harley-Davidson OEM number 53403-52. This one is made by Wyatt Gatling, sold as 1 - ea.
Specifications
- V-Twin number
- 50-1661
- OEM number
- 53403-52
- Manufacturer
- Wyatt Gatling
- Sold as
- 1 - EA
- Origin
- Imported
- Measurements
- Height: 5-1/2"
- 2026 catalogue pages
- 660
