Factory Sample Rear Wheel Hub 3/4" Bearings Chrome
Description

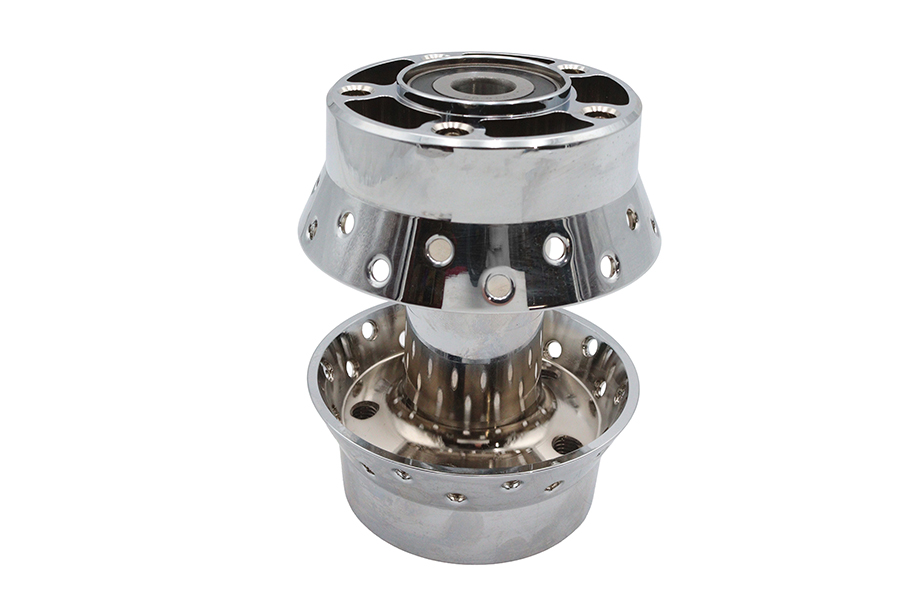

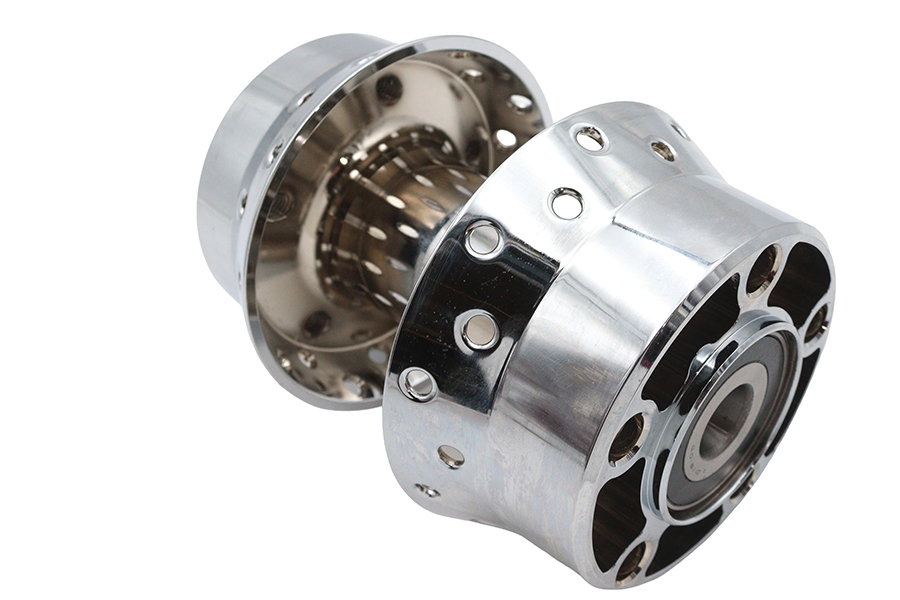

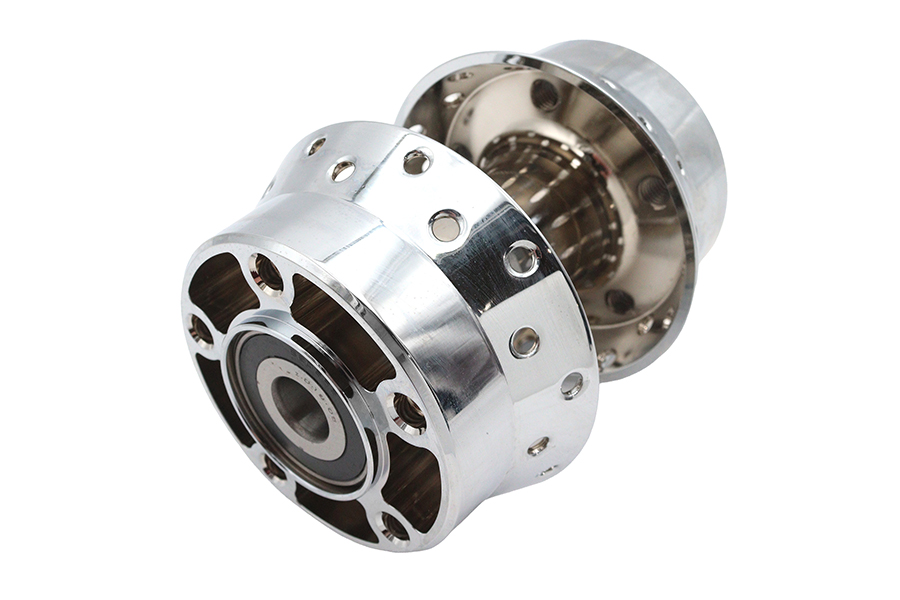

Rear wheel hube features a chrome finish and includes sealed 3/4" bearings and an inner spacer tube. Hub has 7/16"-14 pulley mount threaded hole and a 3/8"-16 brake disc mount threaded hole. The distance between the mounting flanges are 2-7/8" centerto center. Bearings measure 6-5/16" between the brake rotor and pulley mounting flanges. Factory sample are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects, such as cracks or holes, there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment.
V-Twin catalogues part 45-1306 for 5 Harley models: FLST (2000-2007), FXST (2000-2001), XL (2000-2004), FXD (2000-2005), FLT (2000-2001). It cross-references Harley-Davidson OEM number 40976-00. This one is sold as 1 - ea.
Specifications
- V-Twin number
- 45-1306
- OEM number
- 40976-00
- Material
- Alloy
- Finish
- Chrome
- Sold as
- 1 - EA
- Origin
- Imported
- Measurements
- Pulley Mount Holes: 7/16"
- Location
- Rear
