PART 45-0752
Polished Stainless Steel 16" Spoke Set
by V-Twin
$196.26
V-Twin list $163.55 ยท our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
You will also need another part
- Suggested to use with #52-0966 Replica 16" x 3.00" Drop Center Wheel Rim Chrome.
- Suggested to use with #52-0967 Replica 16" x 3.00" Drop Center Wheel Rim Black.
- Required Required to use with #45-0922 40 Piece Spoke Nipple Set Stainless Steel, if longer nipples are needed.
- Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set, when lacing 45 front drum wheels.
- Information for lacing the 16" 45" wheel: Drum Side - Top cross 2 clockwise, spoke head down. Lower spoke cross 2 counter clockwise, spoke head up.
- Spook side - top cross 4 clockwise. Bottom cross 4 counter clockwise. 11/16" offset from drum side flange to rim.
Classic Pre-1984
๐๏ธ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 1 model.
Description

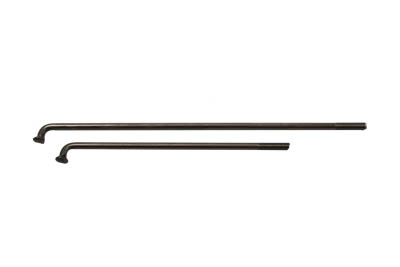

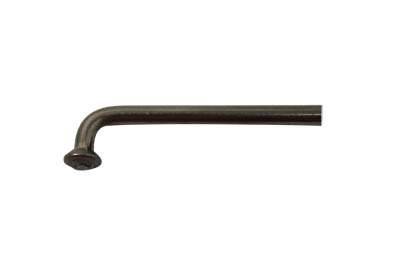

Polished stainless steel front spoke set features an OE style, drop center rim, 20 long and 20 short shank spokes, with 40 spoke nipples. 9 gauge single stage spokes feature a natural finish. Spokes are easy to clean and maintain. For use on a 16" drop center or OE rim with a solo hub.
*NOTE: We suggest using 22mm long nipples when lacing 45 Front drum wheels.
*NOTE: If required, longer nipples are available separately.
V-Twin catalogues part 45-0752 for 1 Harley model: WL (1940-1952). This one is made by V-Twin, sold as 1 - kit.
Specifications
- V-Twin number
- 45-0752
- Manufacturer
- V-Twin
- Sold as
- 1 - KIT
- Origin
- Imported
- Measurements
- Diameter: 3.5mm
- 2026 catalogue pages
- 779
Fits these motorcycles (1)
WL1940-1952
