PART 40-0964
45 WL Raw Side Fill Wrap Around Oil Tank
by Wyatt Gatling
$374.28
V-Twin list $311.90 ยท our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
Before you order — V-Twin tech note
Classic Pre-1984
๐๏ธ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 2 models.
Description

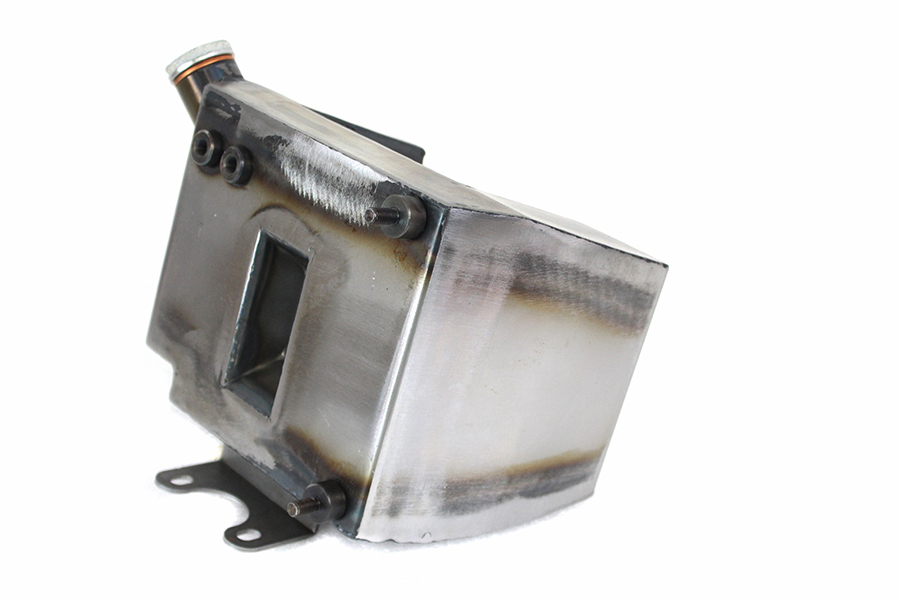

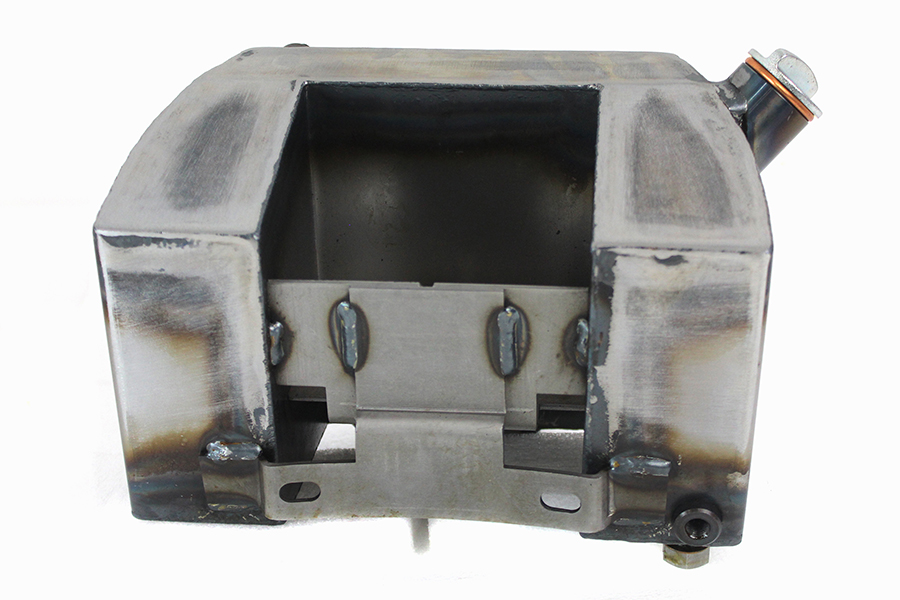

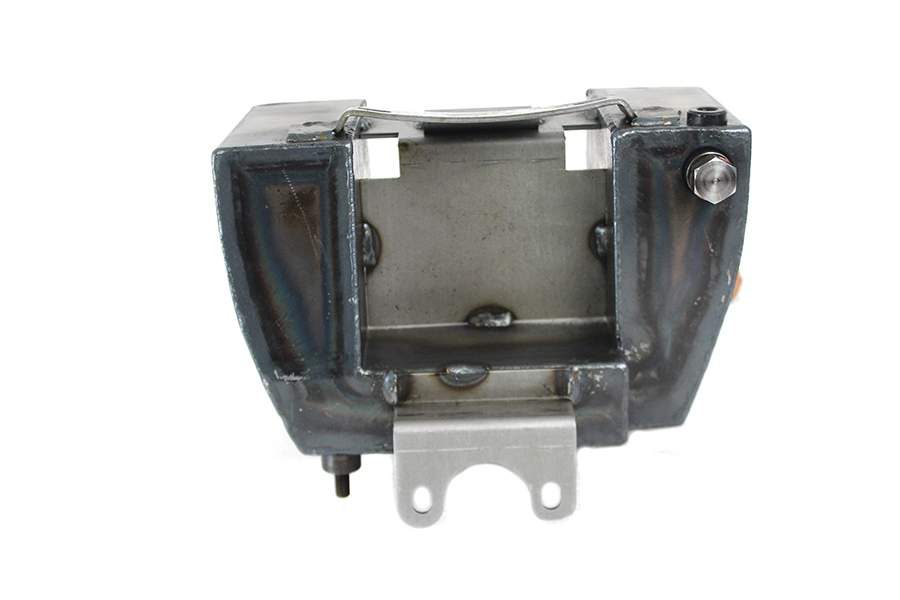

Raw WL side fill oil tank features 1/8" NPT inserts to accept rubber oil lines, 2 coil mounting studs on the left side and the battery box to accept 12 volt mini batteries. Tank also has a pocket built into the front of the tank to allow clearance of the stock battery box mount on the frame. Includes threaded filler cap and drain plug. Battery compartment measures: 3-3/4" deep x 4-7/8 wide x 4-1/4 high.
*NOTE: Must order connector fittings separately.
*NOTE: There is no need to remove the battery box tab!
V-Twin catalogues part 40-0964 for 2 Harley models: W (1936-1952), G (1936-1963). This one is made by Wyatt Gatling, sold as 1 - ea.
Specifications
- V-Twin number
- 40-0964
- Manufacturer
- Wyatt Gatling
- Sold as
- 1 - EA
- Origin
- Imported
- Measurements
- Tank Overall Length: 10-1/8"
- 2026 catalogue pages
- 820
- Other Notes
- Battery Depth: 3-3/4"
Fits these motorcycles (2)
W1936-1952
G1936-1963
