Raw Skull Dash Panel with Red Lens
You will also need another part
- Required Required to use with #28-2007 Dash Rubber Plug.
Description

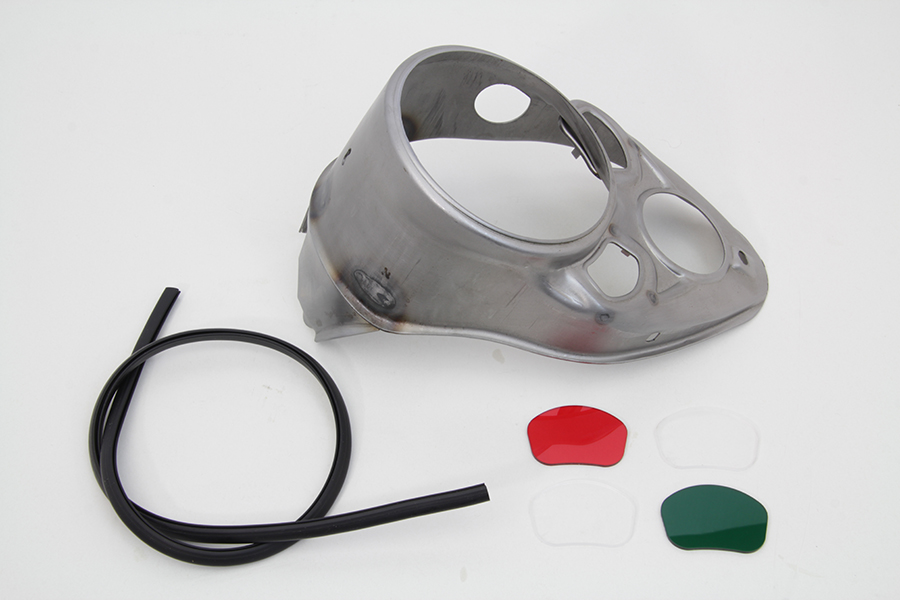

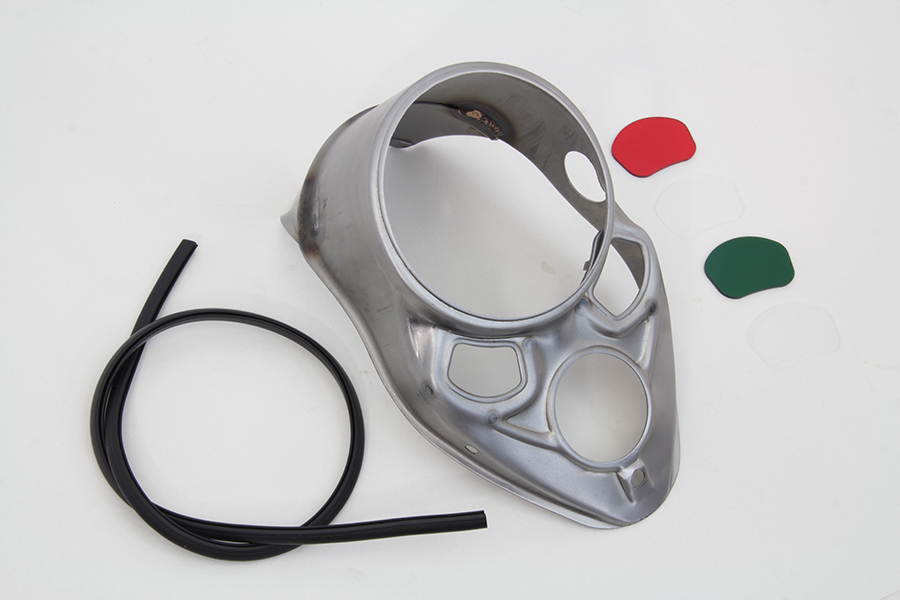

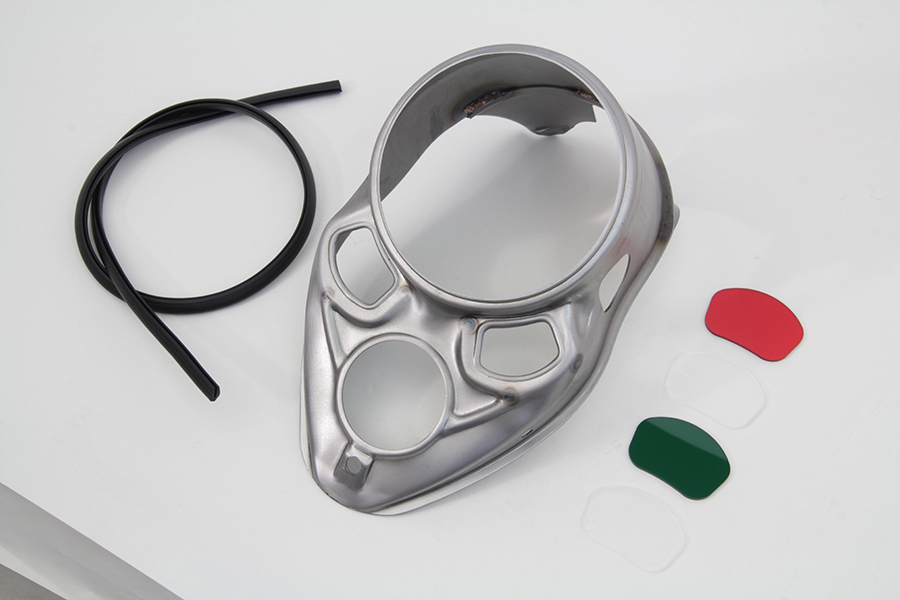

This raw 1937 style skull dash panel has retainer ring, one red, one green, two clear lenses and speedometer lamp switch hole. Use rubber plug on side for speedometer trip knob. 1936-1938 types utilized the rubber plug where the trip knob goes through the dash. Recommended to use cover on 1936-1937 models. Lens tunnels are not required, as gauges are used on these years, with two clear lenses. Speedometer trip hole requires a plastic plug, available separately. Lenses are secured to the dash by frames on the dash underside, just simply bend tabs over. Ready for installation. **NOTE: Dash has correct frames soldered in place as original to hold lenses.
V-Twin catalogues part 39-1779 for 3 Harley models: UL (1937-1937), WL (1937-1937), EL (1937-1937). This one is made by V-Twin, sold as 1 - ea.
Specifications
- V-Twin number
- 39-1779
- Manufacturer
- V-Twin
- Sold as
- 1 - EA
- Origin
- Imported
- 2026 catalogue pages
- 748
