PART 32-1770
XR/XL/WR Magneto Drive Assembly
by V-Twin
$638.35
V-Twin list $531.96 ยท our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
Classic Pre-1984Sportster 1952-Up
๐๏ธ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 4 models.
Description

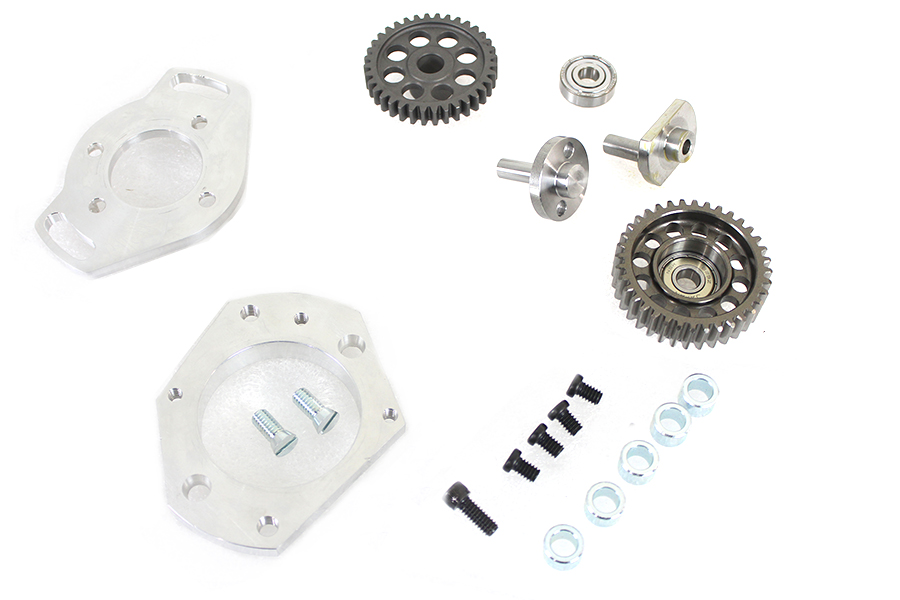

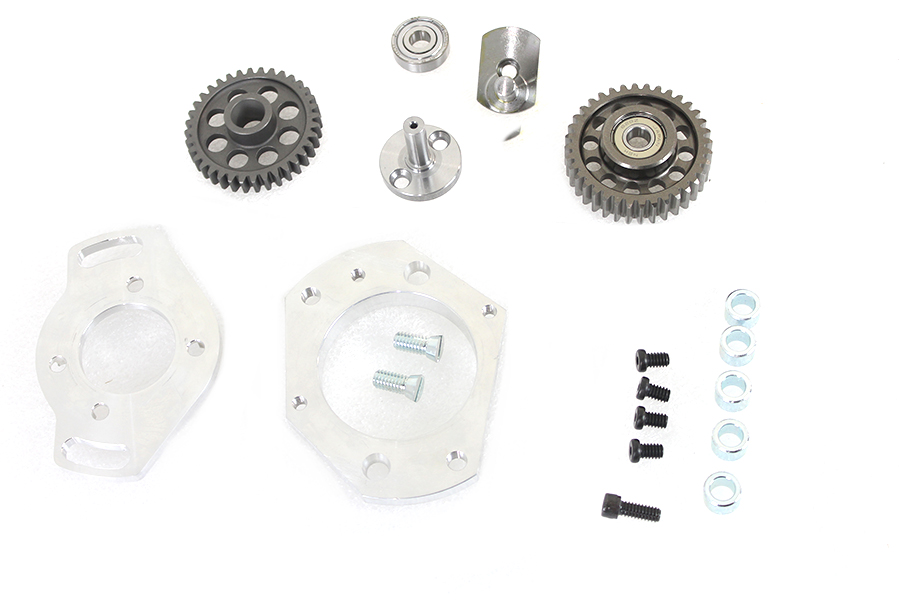

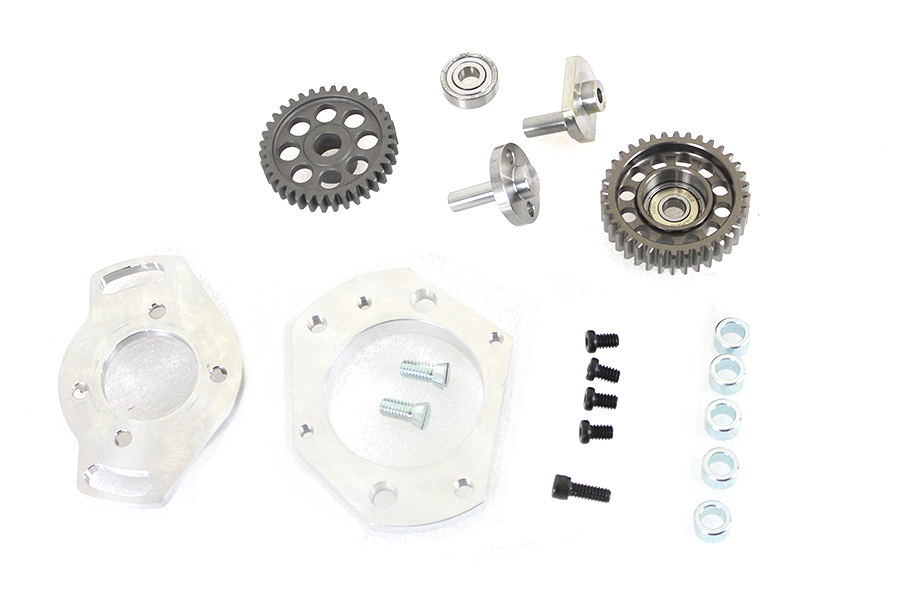

XR/XL/WR magneto drive assembly includes gears and related mount plates, for 45" motors when installing a front mount magneto in place of the generator. 2 idler gear spindles are supplied, the XR magneto idler gear stud raw is how an XR is done. The 45" WR idler gear stud spindle is suitable for 45" W installations. The idler stud must be relocated in engine case and cam cover.
*NOTE: Magneto not included.
V-Twin catalogues part 32-1770 for 4 Harley models: G (1937-1973), WR (1947-1952), W (1936-1952), XR (1970-1980). This one is made by V-Twin, sold as 1 - kit.
Specifications
- V-Twin number
- 32-1770
- Manufacturer
- V-Twin
- Sold as
- 1 - KIT
- Origin
- Imported
- 2026 catalogue pages
- 1318
Goes with this part
V-Twin lists these alongside 32-1770 — replacements, the parts commonly fitted at the same time, and supersessions. Check the fitment on each before ordering.
Fits these motorcycles (4)
G1937-1973
WR1947-1952
W1936-1952
XR1970-1980
