PART 22-0748
XL Rear Brake Assembly
by V-Twin
$571.12
V-Twin list $475.93 ยท our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
Before you order — V-Twin tech note
- Suggested to use with #23-0398 Rear Mechanical Brake Rod 24"Ovearll Length.
Sportster 1952-Up
๐๏ธ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 1 model.
Description

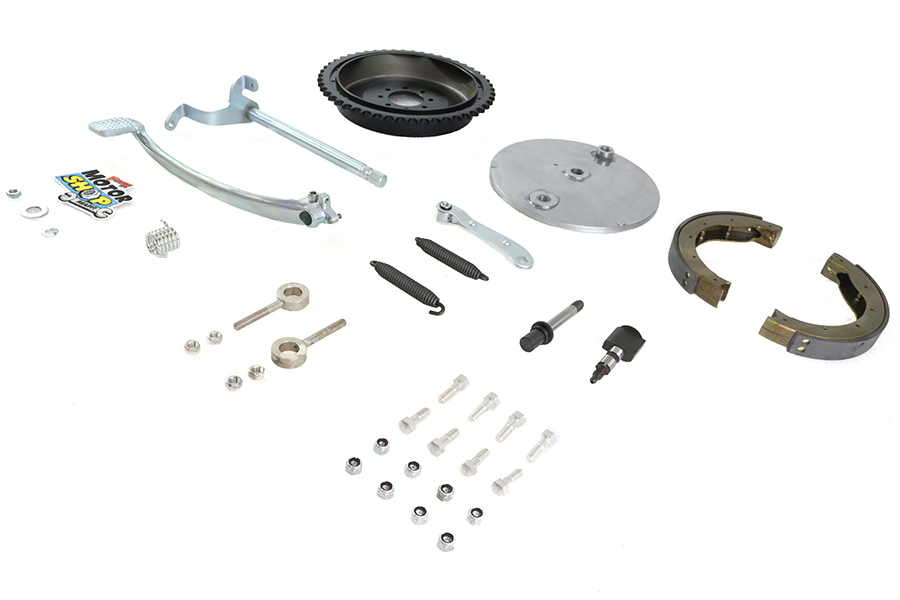

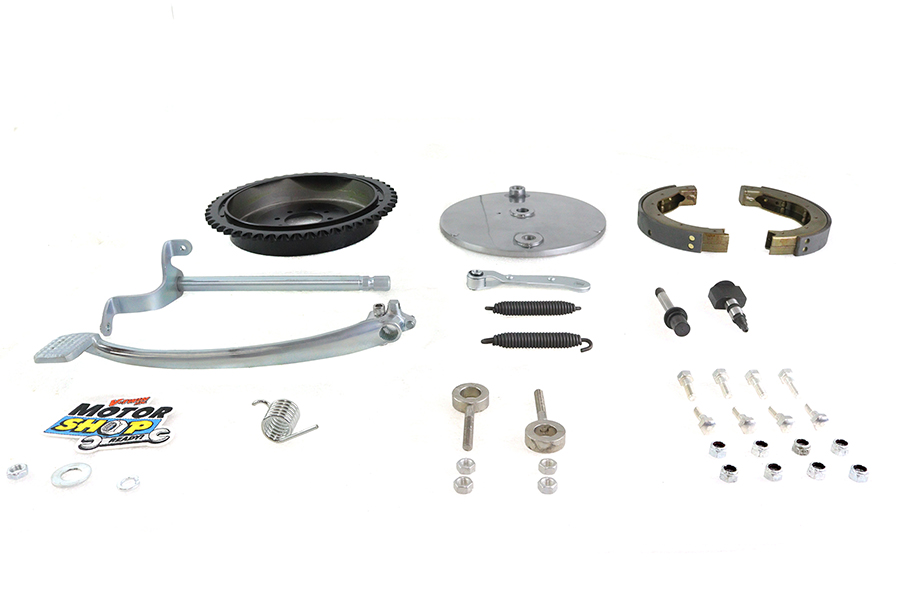

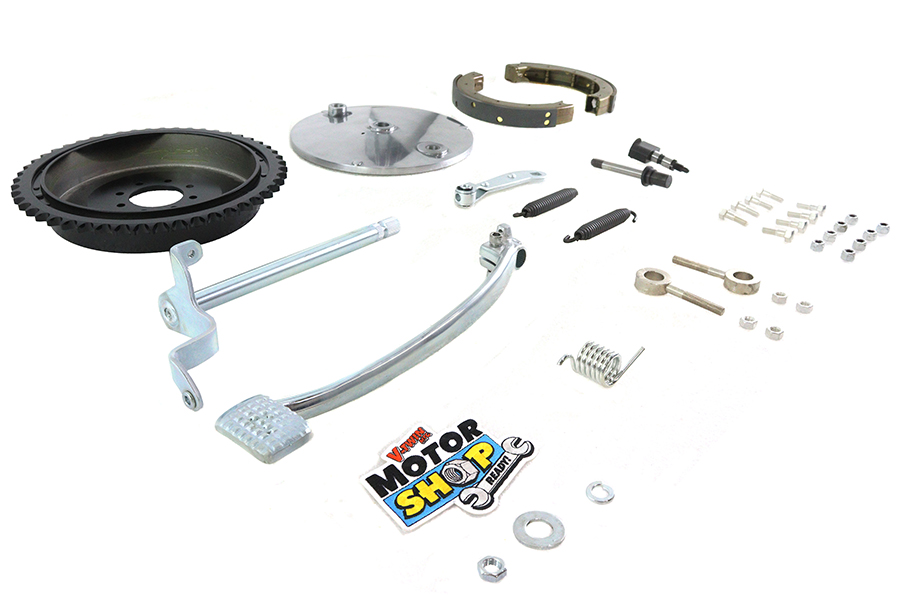

XL rear mechanical type brake assembly. Kit includes a rear brake kit, cadmium rear chain adjuster, black rear brake drum and a cadmium rear brake drum bolt kit. The frame must have the cross shaft tube for installation.
*NOTE: Must order brake rod separately.
V-Twin catalogues part 22-0748 for 1 Harley model: XL (1952-1974). This one is made by V-Twin, sold as 1 - kit.
Specifications
- V-Twin number
- 22-0748
- Manufacturer
- V-Twin
- Sold as
- 1 - KIT
- Origin
- Imported
- Location
- Rear
- 2026 catalogue pages
- 907
Goes with this part
V-Twin lists these alongside 22-0748 — replacements, the parts commonly fitted at the same time, and supersessions. Check the fitment on each before ordering.
22-0847Rear Brake Kit
9020-2 - Rear Chain Adjuster Cadmiumlisted by V-Twin, not in our catalogue
23-0438Rear Brake Drum Black8812-16 - Rear Brake Drum Bolt Cadmiumlisted by V-Twin, not in our catalogue
Fits these motorcycles (1)
XL1952-1974
