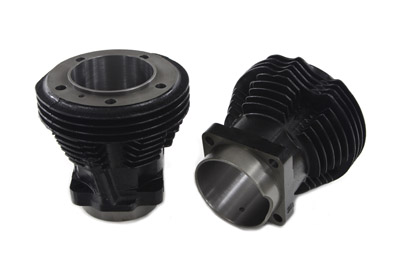

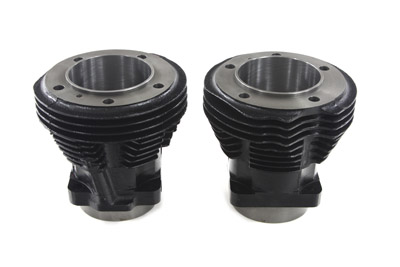

3-5/8" Cylinder Set
Before you order — V-Twin tech note
- Suggested to use with #11-0283 3-5/8" Piston Set Standard.
- Suggested to use with #11-0289 84" Shovelhead Cylinder Kit.
Description
Cylinders are .200 taller than stock height cylinders. For installation of 3-5/8" cylinders after spigot holes have been enlargedto 3.8750". (See diagram for photos.) Cylinders are honed to a finished bore size of 3.6270 and are required to break in as suggested in the shop manual. Set of two cylinders only. Order 3-5/8" standard size pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750". Disassmbly of engine is required to install these cylinders.
*NOTE: 3-5/8" cylinders are drilled to use with 4-1/2" stroke.
*NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
V-Twin catalogues part 11-0385 for 4 Harley models: FL (1966-1984), FLT (1979-1983), FX (1971-1984), FXR (1982-1983). This one is made by Motorshop, sold as 1 - set.
Specifications
- V-Twin number
- 11-0385
- Manufacturer
- Motorshop
- Sold as
- 1 - SET
- Origin
- Imported
- Measurements
- Length: 6-7/8"
- 2026 catalogue pages
- 537
