8-Finned Knucklehead Cam Cover Die Cast
Before you order — V-Twin tech note
- *NOTE: Final reaming for fit should be completed with cover on the right side case, reamed from the left side.
Description

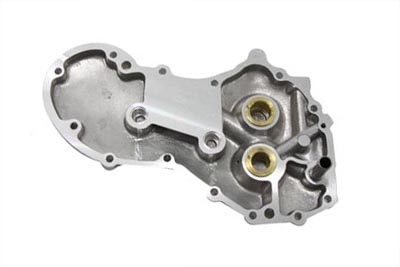

8-finned cam cover includes bushings and breather pipe with a stock die cast finish. Cam cover bushings must be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink, check with screw head before installation.
*NOTE: Check oil passage (drilled hole) into bronze bushings, either on existing bushings or when replacing bushings. Generator holes for 32E 6 volt 2 brush generators are 1/4" on Pre-1957 models and 5/16" on 1958-1969 models.
V-Twin catalogues part 10-0065 for 2 Harley models: EL (1936-1947), FL (1941-1947). It cross-references Harley-Davidson OEM number 25216-36. This one is made by Motorshop, sold as 1 - ea.
Specifications
- V-Twin number
- 10-0065
- OEM number
- 25216-36
- Manufacturer
- Motorshop
- Finish
- Natural
- Sold as
- 1 - EA
- Origin
- Imported
- 2026 catalogue pages
- 503
